Flexible, Efficient Horizontal Movement
Gentle, high-capacity material transport with operational flexibility.

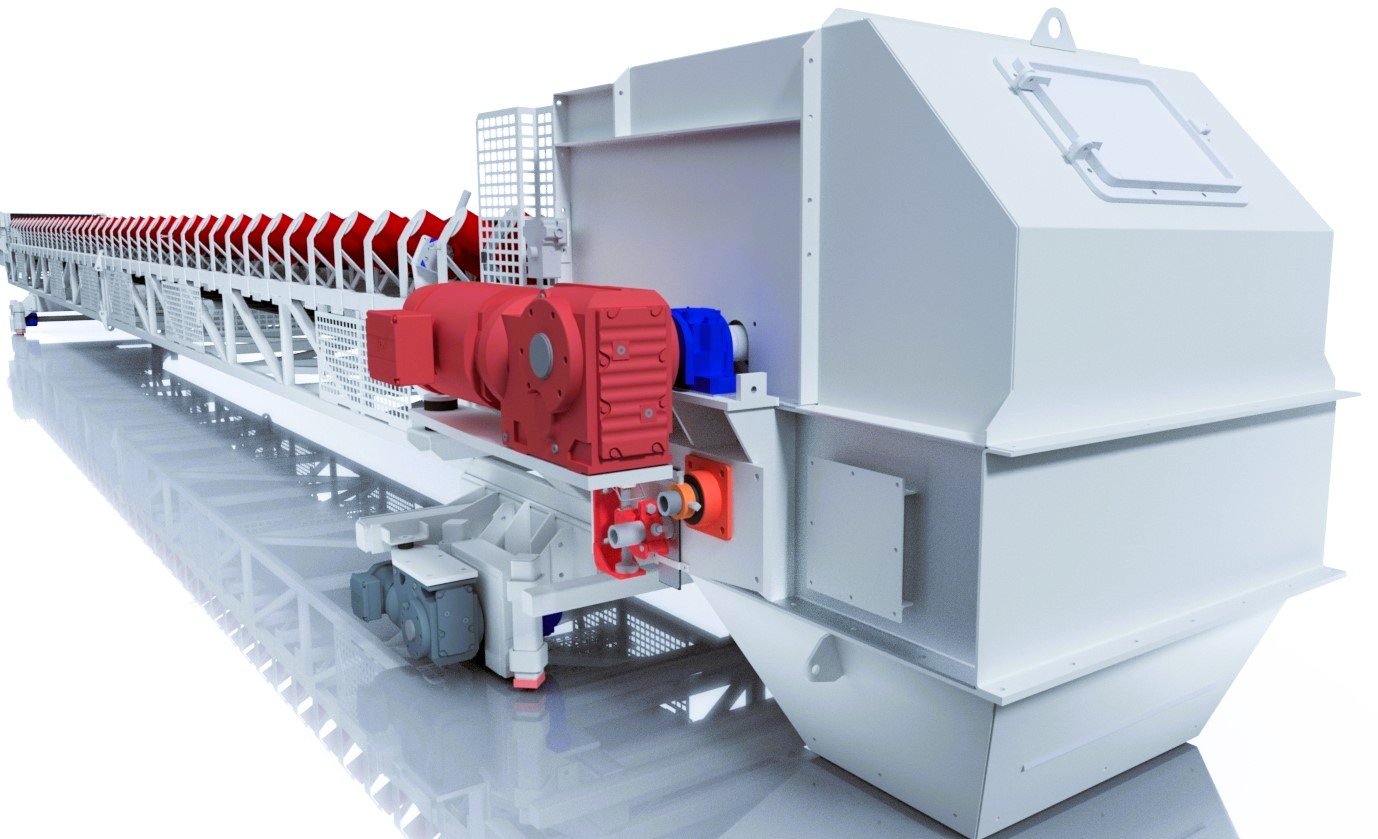

Belt Conveyor
Engineered for reliability and adaptability, our belt conveyors provide efficient horizontal and inclined transport for a wide range of bulk materials across various industries.
Type
Troughed & Flat Belt Systems
Capacity Range
10 TPH – 300 TPH
Length
Custom lengths up to 500 meters
Incline
0° to 30° depending on material characteristics
Belt Width
300 mm – 2,000 mm
Belt Speed
0.5 - 4.0 m/s adjustable
Construction
Modular, bolted frame design
Protection
Hot-dip galvanized components and powder coating
STANDARD COMPONENTS
CONVEYOR FRAME
(Galvanized Steel)
BELTING
(Fabric/Steel Cord)
IDLERS
Troughing, Impact, Return)
DRIVE UNIT
(Motor, Gearbox, Pulley)
TAKE-UP SYSTEM
(Gravity/Screw Type)
HEAD & TAIL PULLEYS
BELT CLEANERS
(Primary & Secondary)
SUPPORT LEGS
INLET HOPPER/SKIRTBOARD
DISCHARGE HOOD
BELTING
(Fabric/Steel Cord)
IDLERS
(Troughing, Impact, Return)
DRIVE UNIT
(Motor, Gearbox, Pulley)
TAKE-UP SYSTEM
(Gravity/Screw Type)
HEAD & TAIL PULLEYS
Configurable Accessories
- Belt Options:Abrasion-resistant, anti-static, fire-resistant, food-grade
- Impact Beds:Heavy-duty impact protection at loading points
- Dust Enclosures:Full dust containment systems
- Mobile Units:Portable conveyor systems with adjustable height
- Weighing Systems:Integrated belt scales for continuous weighing
- Magnetic Separators:Head pulley magnets for tramp iron removal
- Safety Systems:Emergency stop switches, speed monitors
- Covers:Weather protection covers for outdoor installation
- Walkways:Maintenance walkways with handrails
